Alfa Laval Unique Mixproof CP-3 Valve

The Alfa Laval Unique Mixproof CP-3 is designed with user flexibility in mind. Configurable for applications in all sanitary industries, including compliance with Grade A Pasteurized Milk Ordinance (PMO) and 3-A Sanitary Standards for continuous dairy processing, the modular design offers a wide variety of options.

Working Principle

Alfa Laval Unique Mixproof CP-3 is remote-controlled by means of compressed air. The valve is a normally closed (NC) valve. The valve has two independent plug seals, forming a leakage chamber between them under atmospheric pressure during every working condition.

In case of rare accidental leaking of product, this will flow into the leakage chamber and be discharged harmlessly through the leakage outlet, without any threat of product mixing or cross contamination. When the valve is open, the leakage chamber is closed. The product can then flow from one line to the other. The valve can be cleaned and water hammer protected to any level according to the needs in the specific process. There is virtually no spillage of product when operating the valve.

Possible Configurations

The Alfa Laval Unique Mixproof CP-3 offers a wide range of options:

Lower Flush
The Alfa Laval lower flush option ensures clean-in-place (CIP) of the lower sealing element and the OD of the lower plug during seat push. This option efficiently cleans the lower seal in the housing without the need for external CIP connections, supporting continuous processing.

Balancing Flexibility
The Unique Mixproof CP-3 valve has a lower balanced plug to avoid product mix, even in the event of pressure spikes in the system. The upper plug can be configured with or without a balancer, depending on the required performance.

SpiralClean
The Alfa Laval SpiralClean system makes it possible to clean the upper and lower plugs and leakage chamber by external CIP connections. The system cleans more efficiently, uses less cleaning fluid by ensuring that a directional flow of CIP fluid reaches all the surfaces in much less time than with conventional systems. Spiral Clean of the leakage chamber is not dependent on a special type of plug configuration, but can be added to any of the available plug configurations.

Size Flexibility
The valve body can be configured with mixed sizes. The body sections can be fully combined, including the full range of 1 1/2 inch through 6 inch sizes.

Seat Lift and Seat Push
Seat lift and seat push enable cleaning of the plug seals of either the upper or lower plug individually. The Unique Mixproof CP-3 range is available in a variety of configurations, including two separate actuator versions. An actuator with both upper seat lift and lower seat push or an actuator without any seat lift/push operations only one period.

Materials
Product Wetted Steel Parts316L
Other Steel Parts304
Product Wetted SealsEPDM (standard), HNBR, NBR, or FPM
Other SealsCIP seals: EPDM
Actuator seals: NBR
Guide strips: PTFE
Finish OptionsInternal bright (polished) Ra<32µ"
Internal/external bright (internal polished) Ra<32µ"

Note: The Ra values are only for the internal surface.

Technical Data
Product Pressure (max)145 psi (for higher pressure, please ask CSI)
Product Pressure (min)Full vacuum
Temperature Range23°F - +257°F (depending on seal material)
Air Pressure116 psi
Dimensional Data
1 1/2

(in)

2

(in)

2 1/2

(in)

3

(in)

4

(in)

6

(in)

*A24.05525.82729.92129.92136.29940.394
B6.6938.6618.6618.66111.81111.811
**C2.3942.9063.3983.8944.8666.806
OD1.4962.0082.5002.9964.0006.000
ID1.3701.8822.3742.8703.8435.782
t0.0630.0630.0630.0630.0790.109
E5.6696.4967.8747.5989.76410.768
F11.2401.2401.4961.4962.3232.323
F20.1970.1970.1970.1970.1970.197
øD4.7244.7246.1816.1817.3237.323
L9.0559.0559.9219.92111.06311.063
M/Tri-Clamp®0.8270.8270.8270.8270.8271.518
Weight (lb)3235606084115

*For the A-measure, if there are different upper/lower body sizes, please refer to the Configurator in Alfa Laval Anytime or contact CSI.

**The dimension C can always be calculated by the formula C = ½ID-upper + ½ID-lower + 1.02 inches

Unique-CP-3-dimensions
PRESSURE DROP/CAPACITY DIAGRAMS
Unique-Mixproof-CP-3-Pressure-Drop-Capacity-Diagram 3

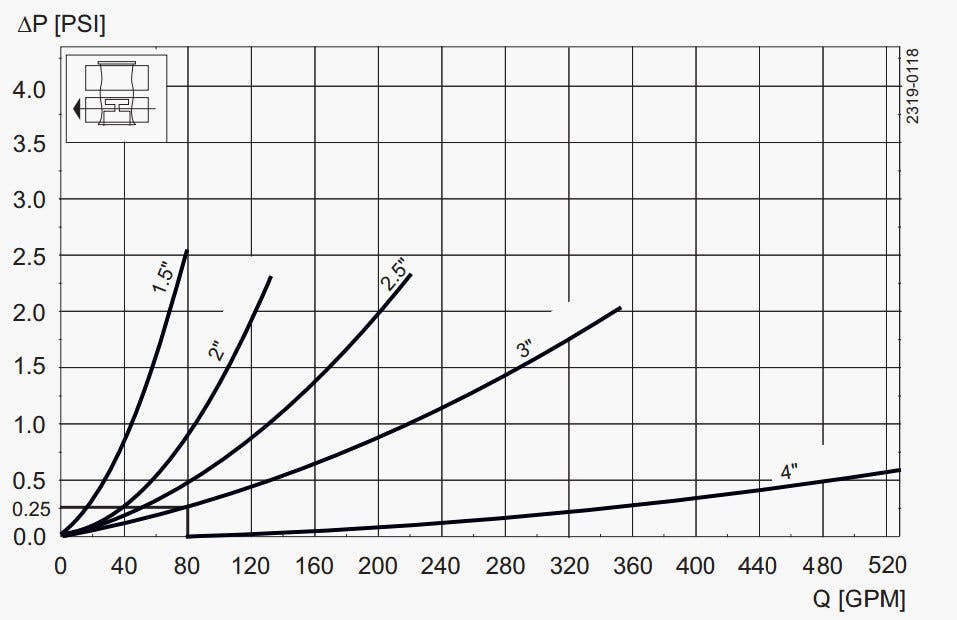

Unique-Mixproof-CP-3-Pressure-Drop-Capacity-Diagram 4
Unique-Mixproof-CP-3-Pressure-Drop-Capacity-Diagram 5
Unique-Mixproof-CP-3-Pressure-Drop-Capacity-Diagram 7
Unique-Mixproof-CP-3-Pressure-Drop-Capacity-Diagram 8

Note: For the diagrams the following applies: Medium is water (68°F). Measurement is in accordance with VDI 2173.

VALVE BODY COMBINATIONS
nique-Mixproof-CP-3-Valve-Body-Combinations

Spare Parts

Mixproof CP-3 Valve Body and Clamps
Part1.522.5346Diagram Key
Wingnut9612558001961255800196125580019612558001961255800196125800161
Clamp w/o Nut96130214019613021501961302160196130216019613021701961302180164
Valve Body, 11-0096130571219615423501961542360196154237019615423801961429541150
Valve Body, 12-0096130571259615423505961542360596154237059615423805961429541550
Valve Body, 21-0096130571279615423507961542360796154237079615423807961429541750
Valve Body, 11-9096130571229615423502961542360296154238029615423802961429541250
Valve Body, 12-9096130571269615423506961542360696154237069615423806961429541650
Valve Body, 21-9096130571289615423508961542360896154237089615423808961429541850
Valve Body, 22-9096130571309615423510961542361096154238109615423810961429542050
Valve Body, 11-18096130571239615423503961542360396154237039615423803961429541350
Valve Body, 11-27096130571249615423504961542360496154237049615423804961429541450
Valve Body, 11-0096130571419615423521961542362196154237219615423821961429542150
Valve Body, 12-0096130571459615423525961542362596154237259615423825961429542550
Valve Body, 21-0096130571479615423527961542362796154237279615423827961429542750
Valve Body, 22-0096130571499615423529961542362996154237299615423929961429542950
Valve Body, 11-9096130571429615423522961542362296154237229615423822961429542250
Valve Body, 12-9096130571469615423526961542362696154237269615423826961429542650
Valve Body, 21-9096130571489615423528961542362896154237289615423828961429542850
Valve Body, 22-9096130571509615423530961542363096154237309615423830961429543050
Valve Body, 11-18096130571439615423523961542362396154237239615423823961429542350
Valve Body, 11-27096130571449615423524961542362496154237249615423824961429542450
Valve Body, Upper, 1 Port96130580159613058017961305801996130580219613058039961305804551
Valve Body, Upper, 2 Ports96130580169613058018961305802096130580229613058040961305804651
Valve Body, Lower, 1 Port96130583159613058317961305831996130583219613058323961305833953
Valve Body, Lower, 2 Ports96130583169613058318961305832096130583229613058324961305834053
Valve Body, Upper, 1 Port96130580279613058029961305803196130580339613058041961305804751
Valve Body, Upper, 2 Ports96130580289613058030961305803296130580349613058042961305804851
Valve Body, Upper, 1 Port96130583279613058329961305833196130583339613058335961305834153
Valve Body, Lower, 2 Ports96130583289613058330961305833296130583349613058336961305834253
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364452
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364552
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364652
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 11

Service Kits

Type22.5346
EPDM96119280739611928077961192807796119280819611928085
NBR96119280749611928078961192807896119280829611928086
FPM96119280759611928079961192807996119280839611928087
HNBR96119280769611928080961192808096119280849611928088



Mixed Size Housing Service Kits - Determined by Largest Connection Size

Type22.534
EPDM9611928181961192818596119281859611928189
NBR9611928182961192818696119281869611928190
FPM9611928183961192818796119281879611928191
HNBR9611928184961192818896119281889611928192



Spare Parts

Part22.5346Diagram Key
Intermediate Piece9614255901961425630196142563039614256701961425710137
Bolt for Indication9614257508961425750896142575089614257508961425750882
Sensor for Indication9611995199961199519996119951999611995199961199519983
Cable for Sensor for Indication9611994915961199491596119949159611994915961199491583.1
Plug9615331901961533190196153319019615331901961533190115.2
Spindle Liner9614221101961420530196142053019614205301961420530142
Clamp9613011801961300920196130092019613009201961300920143
Lock9613011701961300910196130091019613009101961300910144
O-Ring, EPDM9611993492961199349396119934939611993493961199349339
O-Ring, EPDM9611995521961199552196119955219611995521961199552140
Flushing Tube9614205401961420540196142054019614205401961420540141
Spray Nozzle, PVDF9614221301961422120196142212019614221201961422120158
Guide Ring, PTFE9613008416961300841796130084179613008417961300841745
O-Ring, EPDM9611993632961199363696119936369611993640961199364447
O-Ring, NBR9611993633961199363796119936379611993641961199364547
O-Ring, FPM9611993634961199363896119936389611993642961199364647
O-Ring, HNBR9611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra 1.69613014201961300640196130064019613018801961301700148
Upper Sealing Element, Polished, Ra 0.89613014203961300640396130064039613018803961301700348
Lip Seal, EPDM9613008501961300851196130085119613008511961300851149
Lip Seal, NBR9613008541961300854396130085439613008543961300854349
Lip Seal, FPM9613008503961300851396130085139613008513961300851349
Lip Seal, HNBR9613008504961300851496130085149613008514961300851449
Guide Ring, PTFE9613008401961300840296130084029613008402961300840254
Upper Plug9614233101961423400196142340019614234501961423500155
Seal Ring, EPDM9613095106961309510996130951099613095119961309511256
Seal Ring, NBR9613095114961309511596130951159613095120961309511656
Seal Ring, FPM9613095105961309510896130951089613095118961309511156
Seal Ring, HNBR9613095104961309510796130951079613095117961309511056
Lip Seal, EPDM9613008706961300871196130087119613008711961300871157
Lip Seal, NBR9613008717961300871896130087189613008718961300871857
Lip Seal, FPM9613008708961300871396130087139613008713961300871357
Lip Seal, HNBR9613008709961300871496130087149613008714961300871457
O-Ring, EPDM9611993555961199357296119935729611993572961199357238
Seal Ring, EPDM9613095206961309520996130952099613095219961309521274
Seal Ring, NBR9613095214961309521596130952159613095220961309521674
Seal Ring, FPM9613095205961309520896130952089613095218961309521174
Seal Ring, HNBR9613095204961309520796130952079613095217961309521074
Lower Plug9614202937961420160196142016019614217821961428480175
O-Ring, EPDM9611993632961199363696119936369611993640961199364476
O-Ring, NBR9611993633961199363796119936379611993641961199364576
O-Ring, FPM9611993634961199363896119936389611993642961199364676
O-Ring, HNBR9611993635961199363996119936399611993643961199364776
Lip Seal, EPDM9613008521961300852696130085269613008548961300853177
Lip Seal, NBR9613008545961300854696130085469613008553961300854777
Lip Seal, FPM9613008523961300852896130085289613008550961300853377
Lip Seal, HNBR9613008524961300852996130085299613008551961300853477
Lower Sealing Element, Blasted, Ra 1.69613023902961302410296130241029613066201961302450279
Lower Sealing Element, Polished, Ra 0.89613023904961302410496130241049613066202961302450479
Guide Ring, PTFE9613008413961300841496130084149613008420961300841580
Cover9613049005961304900696130490069613049015961304900781
O-Ring, EPDM9611993632961199363696119936369611993640961199364452
O-Ring, NBR9611993633961199363796119936379611993641961199364552
O-Ring, FPM9611993634961199363896119936389611993642961199364652
O-Ring, HNBR9611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 20 (US PMO)

Service Kits

Type1.522.5346
EPDM961192827396119282779611928281961192828196119282859611928289
NBR961192827496119282789611928282961192828296119282869611928290
FPM961192827596119282799611928283961192828396119282879611928291
HNBR961192827696119282809611928284961192828496119282889611928292



Mixed Size Housing Service Kits - Determined by Smallest Connection Size

Type1.522.534
EPDM96119283339611928337961192834196119283419611928345
NBR96119283349611928338961192834296119283429611928346
FPM96119283359611928339961192834396119283439611928347
HNBR96119283369611928340961192834496119283449611928348



Spare Parts

Part1.522.5346Diagram Key
Intermediate Piece96142555019614255901961425630196142563039614256701961425710137
Bolt for Indication96142575089614257508961425750896142575089614257508961425750882
Sensor for Indication96119957709611995770961199577096119957709611995770961199577083
Cable for Sensor for Indication96119949159611994915961199491596119949159611994915961199491583.1
Plug96119934929611993492961199349396119934939611993493961199349315.2
Spindle Liner96142211019614221101961420530196142053019614205301961420530142
Clamp96130118019613011801961300920196130092019613009201961300920143
Lock96130117019613011701961300910196130091019613009101961300910144
O-Ring, EPDM96119934929611993492961199349396119934939611993493961199349339
O-Ring, EPDM96119955219611995521961199552196119955219611995521961199552140
Flushing Tube96132054019613205401961320540196132054019613205401961320540141
Spray Nozzle, PVDF96132213019613221301961422120196142212019614221201961422120158
Guide Ring, PTFE96130084129613008413961300841496130084149613008420961300841545
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364447
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364547
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364647
O-Ring, HNBR96119936319611993635961199363996119936399611993639961199364747
Upper Sealing Element, Blasted, Ra 1.696130157019613014202961300640296130064029613066001961301700248
Upper Sealing Element, Polished, Ra 0.896130157029613014204961300640496130064049613066002961301700448
Lip Seal, EPDM96130085169613008521961300852696130085269613008548961300853149
Lip Seal, NBR96130085449613008545961300854696130085469613008553961300854749
Lip Seal, FPM96130085189613008523961300852896130085289613008550961300853349
Lip Seal, HNBR96130085199613008524961300852996130085299613008551961300853449
Guide Ring, PTFE96130084019613008401961300840296130084029613008402961300840254
Upper Plug96142325019614233109961423400796142340079614234505961423500355
Seal Ring, EPDM96130951069613095106961309510996130951099613095119961309511256
Seal Ring, NBR96130951149613095114961309511596130951159613095120961309511656
Seal Ring, FPM96130951059613095105961309510896130951089613095118961309511156
Seal Ring, HNBR96130951049613095104961309510796130951079613095117961309511056
Lip Seal, EPDM96130087069613008706961300871196130087119613008711961300871157
Lip Seal, NBR96130087179613008717961300871896130087189613008718961300871857
Lip Seal, FPM96130087089613008708961300871396130087139613008713961300871357
Lip Seal, HNBR96130087099613008709961300871496130087149613008714961300871457
O-Ring, EPDM96119935559611993555961199357296119935729611993572961199357238
Seal Ring, EPDM96130952069613095206961309520996130952099613095219961309521274
Seal Ring, NBR96130952149613095214961309521596130952159613095220961309521674
Seal Ring, FPM96130952059613095205961309520896130952089613095218961309521174
Seal Ring, HNBR96130952049613095204961309520796130952079613095217961309521074
Lower Plug96142029659614204821961420162196142016339614217801961428480775
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364476
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364576
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364676
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364776
Special Lip Seal, EPDM96134642599613464215961346420396134642039613464219961346420795
Special Lip Seal, NBR96134642609613464216961346420496134642049613464220961346420895
Special Lip Seal, HNBR96134642579613464213961346420196134642019613464217961346420595
Special Lip Seal, FPM96134642589613464214961346420296134642029613464218961346420695
Lower Sealing Element, Upper Part96142577019613475801961346520196134652019613476001961346540196
Lower Sealing Element, Lower Part96142578019613475901961346530196134653019613476101961346550197
Guide Ring, Turcite96134661119613466104961346610196134661019613466105961346610298
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364452
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364552
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364652
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 19 (US PMO)

Service Kits

Type22.5346
EPDM96119282579611928261961192826196119282659611928269
NBR96119282589611928262961192826296119282669611928270
FPM96119282599611928263961192826396119282679611928271
HNBR96119282609611928264961192826496119282689611928272



Mixed Size Housing Service Kits - Determined by Smallest Connection Size

Type22.534
EPDM9611928321961192832596119283259611928329
NBR9611928322961192832696119283269611928330
FPM9611928323961192832796119283279611928331
HNBR9611928324961192832896119283289611928332



Spare Parts

Part22.5346Diagram Key
Intermediate Piece9614255901961425630196142563039614256701961425710137
Bolt for Indication9614257508961425750896142575089614257508961425750882
Sensor for Indication9611995199961199519996119951999611995199961199519983
Cable for Sensor for Indication9611994915961199491596119949159611994915961199491583.1
Plug9615331901961533190196153319019615331901961533190115.2
Spindle Liner9614221101961420530196142053019614205301961420530142
Clamp9613011801961300920196130092019613009201961300920143
Lock9613011701961300910196130091019613009101961300910144
O-Ring, EPDM9611993492961199349396119934939611993493961199349339
O-Ring, EPDM9611995521961199552196119955219611995521961199552140
Flushing Tube9613205401961320540196132054019613205401961320540141
Spray Nozzle, PVDF9613221301961422120196142212019614221201961422120158
Guide Ring, PTFE9613008416961300841796130084179613008417961300841745
O-Ring, EPDM9611993632961199363696119936369611993640961199364447
O-Ring, NBR9611993633961199363796119936379611993641961199364547
O-Ring, FPM9611993634961199363896119936389611993642961199364647
O-Ring, HNBR9611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra 1.69613014201961300640196130064019613018801961301700148
Upper Sealing Element, Polished, Ra 0.89613014203961300640396130064039613018803961301700348
Lip Seal, EPDM9613008501961300851196130085119613008511961300851149
Lip Seal, NBR9613008541961300854396130085439613008543961300854349
Lip Seal, FPM9613008503961300851396130085139613008513961300851349
Lip Seal, HNBR9613008504961300851496130085149613008514961300851449
Guide Ring, PTFE9613008401961300840296130084029613008402961300840254
Upper Plug9614233101961423400196142340019614234501961423500155
Seal Ring, EPDM9613095106961309510996130951099613095119961309511256
Seal Ring, NBR9613095114961309511596130951159613095120961309511656
Seal Ring, FPM9613095105961309510896130951089613095118961309511156
Seal Ring, HNBR9613095104961309510796130951079613095117961309511056
Lip Seal, EPDM9613008706961300871196130087119613008711961300871157
Lip Seal, NBR9613008717961300871896130087189613008718961300871857
Lip Seal, FPM9613008708961300871396130087139613008713961300871357
Lip Seal, HNBR9613008709961300871496130087149613008714961300871457
O-Ring, EPDM9611993555961199357296119935729611993572961199357238
Seal Ring, EPDM9613095206961309520996130952099613095219961309521274
Seal Ring, NBR9613095214961309521596130952159613095220961309521674
Seal Ring, FPM9613095205961309520896130952089613095218961309521174
Seal Ring, HNBR9613095204961309520796130952079613095217961309521074
Lower Plug9614204821961420162196142016339614217801961428480775
O-Ring, EPDM9611993632961199363696119936369611993640961199364476
O-Ring, EPDM9611993633961199363796119936379611993641961199364576
O-RIng, FPM9611993634961199363896119936389611993642961199364676
O-Ring, HNBR9611993635961199363996119936399611993643961199364776
Special Lip Seal, EPDM9613464215961346420396134642039613464219961346420795
Special Lip Seal, NBR9613464216961346420496134642049613464220961346420895
Special Lip Seal, HNBR9613464213961346420196134642019613464217961346420595
Special Lip Seal, FPM9613464214961346420296134642029613464218961346420695
Lower Sealing Element, Upper Part9613475801961346520196134652019613476001961346540196
Lower Sealing Element, Lower Part9613475901961346530196134653019613476101961346550197
Guide Ring, Turcite9613466104961346610196134661019613466105961346610298
O-Ring, EPDM9611993632961199363696119936369611993640961199364452
O-Ring, NBR9611993633961199363796119936379611993641961199364552
O-Ring, FPM9611993634961199363896119936389611993642961199364652
O-Ring, HNBR9611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 18

Service Kits

Type1.522.5346
EPDM961192823796119282419611928245961192824596119282499611928253
NBR961192823896119282429611928246961192824696119282509611928254
FPM961192823996119282439611928247961192824796119282519611928255
HNBR961192824096119282449611928248961192824896119282529611928256



Mixed Size Housing Service Kits - Determined by Smallest Connection Size

Type1.522.534
EPDM96119283059611928309961192831396119283139611928317
NBR96119283069611928310961192831496119283149611928318
FPM96119283079611928311961192831596119283159611928319
HNBR96119283089611928312961192831696119283169611928320



Spare Parts

Part1.522.5346Diagram Key
Intermediate Piece96142555029614255902961425630296142563049614256702961425710237
Bolt for Indication96142575089614257508961425750896142575089614257508961425750882
Sensor for Indication96119957709611995770961199577096119957709611995770961199577083
Cable for Sensor for Indication96119949159611994915961199491596119949159611994915961199491583.1
Plug96153319019615331901961533190196153319019615331901961533190115.2
Spindle Liner96142211019614221101961420530196142053019614205301961420530142
Clamp96130118019613011801961300920196130092019613009201961300920143
Lock96130117019613011701961300910196130091019613009101961300910144
O-Ring, EPDM96119934929611993492961199349396119934939611993493961199349339
O-Ring, EPDM96119955219611995521961199552196119955219611995521961199552140
Flushing Tube96132054019613205401961320540196132054019613205401961320540141
Spray Nozzle, PVDF96132213019613221301961422120196142212019614221201961422120158
Guide Ring, PTFE96130084129613008413961300841496130084149613008420961300841545
O-Ring, EPDM96119936559611993653961199365496119936549611993654961199365446
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364447
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364547
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364647
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra 1.696142201019614219801961420590196142059019614219901961422000148
Upper Sealing Element, Polished, Ra 0.896142201029614219802961420590296142059029614219902961422000248
Lip Seal, EPDM96130085169613008521961300852696130085269613008548961300853149
Lip Seal, NBR96130085449613008545961300854696130085469613008553961300854749
Lip Seal, FPM96130085189613008523961300852896130085289613008550961300853349
Lip Seal, HNBR96130085199613008524961300852996130085299613008551961300853449
Flushing Tube96142058019614205802961420580396142058039614205804961420580566
O-Ring, EPDM96119955239611995523961199552396119955239611995523961199552367
Drain96142057019614205701961420570196142057019614205701961420570168
Nozzle96142056019614205601961420560196142056019614205601961420560169
O-Ring, EPDM961199552296119955229611995522961199552296119955229611995522144
Guide Ring, PTFE96130084019613008401961300840296130084029613008402961300840254
Upper Plug96142325029614233110961423400896142340089614234506961423500455
Seal Ring, EPDM96130951069613095106961309510996130951099613095119961309511256
Seal Ring, NBR96130951149613095114961309511596130951159613095120961309511656
Seal Ring, FPM96130951059613095105961309510896130951089613095118961309511156
Seal Ring, HNBR9613095104961309510496109510796130951079613095117961309511056
Lip Seal, EPDM96130087069613008706961300871196130087119613008711961300871157
Lip Seal, NBR96130087179613008717961300871896130087189613008718961300871857
Lip Seal, FPM96130087089613008708961300871396130087139613008713961300871357
Lip Seal, HNBR96130087099613008709961300871496130087149613008714961300871457
O-Ring, EPDM96119935559611993555961199357296119935729611993572961199357238
Seal Ring, EPDM96130952069613095206961309520996130952099613095219961309521274
Seal Ring, NBR96130952149613095214961309521596130952159613095220961309521674
Seal Ring, FPM96130952059613095205961309520896130952089613095218961309521174
Seal Ring, HNBR96130952049613095204961309520796130952079613095217961309521074
Lower Plug96142029669614204822961420162296142016349614217802961428480875
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364476
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364576
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364676
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364776
Special Lip Seal, EPDM96134642599613464215961346420396134642039613464219961346420795
Special Lip Seal, NBR96134642609613464216961346420496134642049613464220961346420895
Special Lip Seal, HNBR96134642579613464213961346420196134642019613464217961346420595
Special Lip Seal, FPM96134642589613464214961346420296134642029613464218961346420695
Lower Sealing Element, Upper Part96142577019613475801961346520196134652019613476001961346540196
Lower Sealing Element, Lower Part96142578019613475901961346530196134653019613476101961346550197
Guide Ring, Turcite96134661119613466104961346610196134661019613466105961346610298
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364452
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364552
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364652
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 17

Service Kits

Type22.5346
EPDM96119282219611928225961192822596119282299611928233
NBR96119282229611928226961192822696119282309611928234
FPM96119282239611928227961192822796119282319611928235
HNBR96119282249611928228961192822896119282329611928236



Mixed Size Housing Service Kits - Determined by Smallest Size Connection

Type22.534
EPDM9611928293961192829796119282979611928301
NBR9611928294961192829896119282989611928302
FPM9611928295961192829996119282999611928303
HNBR9611928296961192830096119283009611928304



Spare Parts

Part22.5346Diagram Key
Intermediate Piece9614255902961425630296142563049614256702961425710237
Bolt for Indication9614257508961425750896142575089614257508961425750882
Sensor for Indication9611995199961199519996119951999611995199961199519983
Cable for Sensor for Indication9611994915961199491596119949159611994915961199491583.1
Plug9615331901961533190196153319019615331901961533190115.2
Spindle Liner9614221101961420530196142053019614205301961420530142
Clamp9613011801961300920196130092019613009201961300920143
Lock9613011701961300910196130091019613009101961300910144
O-Ring, EPDM9611993492961199349396119934939611993493961199349339
O-Ring, EPDM9611995521961199552196119955219611995521961199552140
Flushing Tube9613205401961320540196132054019613205401961320540141
Spray Nozzle, PVDF9613221301961422120196142212019614221201961422120158
Guide Ring, PTFE9613008416961300841796130084179613008417961300841745
O-Ring, EPDM9611993653961199365496119936549611993654961199365446
O-Ring, EPDM9611993632961199363696119936369611993640961199364447
O-Ring, NBR9611993633961199363796119936379611993641961199364547
O-Ring, FPM9611993634961199363896119936389611993642961199364647
O-Ring, HNBR9611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra 1.69614220201961422030196142203019614220401961422060148
Upper Sealing Element, Polished, Ra 0.89614220202961422030296142203029614220402961422060248
Lip Seal, EPDM9613008501961300851196130085119613008511961300851149
Lip Seal, NBR9613008541961300854396130085439613008543961300854349
Lip Seal, FPM9613008503961300851396130085139613008513961300851349
Lip Seal, HNBR9613008504961300851496130085149613008514961300851449
Flushing Tube9614205802961420580396142058039614205804961420580566
O-Ring, EPDM9611995523961199552396119955239611995523961199552367
Drain9614205701961420570196142057019614205701961420570168
Nozzle9614205601961420560196142056019614205601961420560169
O-Ring, EPDM96119955229611995522961199552296119955229611995522144
Guide Ring, PTFE96130084019613008402961300840296130084029613008402554
Upper Plug9614233102961423400296142340029614234502961423500255
Seal Ring, EPDM9613095106961309510996130951099613095119961309511256
Seal Ring, NBR9613095114961309511596130951159613095120961309511656
Seal Ring, FPM9613095105961309510896130951089613095118961309511156
Seal Ring, HNBR9613095104961309510796130951079613095117961309511056
Lip Seal, EPDM9613008706961300871196130087119613008711961300871157
Lip Seal, NBR9613008717961300871896130087189613008718961300871857
Lip Seal, FPM9613008708961300871396130087139613008713961300871357
Lip Seal, HNBR9613008709961300871496130087149613008714961300871457
O-Ring, EPDM9611993555961199357296119935729611993572961199357238

Seal Ring, EPDM

9613095206961309520996130952099613095219961309521274
Seal Ring, NBR9613095214961309521596130952159613095220961309521674
Seal Ring, FPM9613095205961309520896130952089613095218961309521174
Seal Ring, HNBR9613095204961309520796130952079613095217961309521074
Lower Plug9614204822961420162296142016349614217802961428480875
O-Ring, EPDM9611993632961199363696119936369611993640961199364476
O-Ring, NBR9611993633961199363796119936379611993641961199364576
O-Ring, FPM9611993634961199363896119936389611993642961199364676
O-Ring, HNBR9611993635961199363996119936399611993643961199364776
Special Lip Seal, EPDM9613464215961346420396134642039613464219961346420795
Special Lip Seal, NBR9613464216961346420496134642049613464220961346420895
Special Lip Seal, HNBR9613464213961346420196134642019613464217961346420595
Special Lip Seal, FPM9613464214961346420296134642029613464218961346420695
Lower Sealing Element, Upper Part9613475801961346520196134652019613476001961346540196
Lower Sealing Element, Lower Part9613475901961346530196134653019613476101961346550197
Guide Ring, Turcite9613466104961346610196134661019613466105961346610298
O-Ring, EPDM9611993632961199363696119936369611993640961199364452
O-Ring, NBR9611993633961199363796119936379611993641961199364552
O-Ring, FPM9611993634961199363896119936389611993642961199364652
O-Ring, HNBR9611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 14

Service Kits

Type1.522.5346
EPDM961192801796119280219611928025961192802596119280299611928033
NBR961192801896119280229611928026961192802696119280309611928034
FPM961192801996119280239611928027961192802796119280319611928035
HNBR961192802096119280249611928028961192802896119280329611928036



Mixed Size Housing Service Kits - Determined by Smallest Connection Size

Type1.522.534
EPDM96119281379611928141961192814596119281459611928149
NBR96119281389611928142961192814696119281469611928150
FPM96119281399611928143961192814796119281479611928151
HNBR96119281409611928144961192814896119281489611928152



Spare Parts

Part1.522.5346Diagram Key
Intermediate Piece96142555019614255901961425630196142563039614256701961425710137
Bolt for Indication96142575089614257508961425750896142575089614257508961425750882
Sensor for Indication96119957709611995770961199577096119957709611995770961199577083
Cable for Sensor for Indication96119949159611994915961199491596119949159611994915961199491583.1
Plug96153319019615331901961533190196153319019615331901961533190115.2
Spindle Liner96142211019614221101961420530196142053019614205301961420530142
Clamp96130118019613011801961300920196130092019613009201961300920143
Lock96130117019613011701961300910196130091019613009101961300910144
O-Ring, EPDM96119934929611993492961199349396119934939611993493961199349339
O-Ring, EPDM96119955219611995521961199552196119955219611995521961199552140
Flushing Tube96132054019613205401961320540196132054019613205401961320540141
Spray Nozzle, PVDF96132213019613221301961422120196142212019614221201961422120158
Guide Ring, PTFE96130084129613008413961300841496130084149613008420961300841545
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364447
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364547
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364647
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra 1.696130157019613014202961300640296130064029613066001961301700248
Upper Sealing Element, Polished, Ra 0.896130157029613014204961300640496130064049613066002961301700448
Lip Seal, EPDM96130085169613008521961300852696130085269613008548961300853149
Lip Seal, NBR96130085449613008545961300854696130085469613008553961300854749
Lip Seal, FPM96130085189613008523961300852896130085289613008550961300853349
Lip Seal, HNBR96130085199613008524961300852996130085299613008551961300853449
Guide Ring, PTFE96130084019613008401961300840296130084029613008402961300840254
Upper Plug96142325019614233109961423400796142340079614234505961423500355
Seal Ring, EPDM96130951069613095106961309510996130951099613095119961309511256
Seal Ring, NBR96130951149613095114961309511596130951159613095120961309511656
Seal Ring, FPM96130951059613095105961309510896130951089613095118961309511156
Seal Ring, HNBR96130951049613095104961309510796130951079613095117961309511056
Lip Seal, EPDM96130087069613008706961300871196130087119613008711961300871157
Lip Seal, NBR96130087179613008717961300871896130087189613008718961300871857
Lip Seal, FPM96130087089613008708961300871396130087139613008713961300871357

Lip Seal, HNBR

96130087099613008709961300871496130087149613008714961300871457
O-Ring, EPDM96119935559611993555961199357296119935729611993572961199357238
Seal Ring, EPDM96130952069613095206961309520996130952099613095219961309521274
Seal Ring, NBR96130952149613095214961309521596130952159613095220961309521674
Seal Ring, FPM96130952059613095205961309520896130952089613095218961309521174
Seal Ring, HNBR96130952049613095204961309520796130952079613095217961309521074
Lower Plug96142029029614202938961420160296142016029614217822961428480275
Flushing Tube96142058019614205802961420580396142058039614205804961420580570
O-Ring, EPDM96119955239611995523961199552396119955239611995523961199552371
Drain96142057019614205701961420570196142057019614205701961420570172
Nozzle96142056019614205601961420560196142056019614205601961420560173
O-Ring, EPDM961199552296119955229611995522961199552296119955229611995522145
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364476
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364576
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364676
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364776
Lip Seal, EPDM96130085169613008521961300852696130085269613008548961300853177
Lip Seal, NBR96130085449613008545961300854696130085469613008553961300854777
Lip Seal, FPM96130085189613008523961300852896130085289613008550961300853377
Lip Seal, HNBR96130085199613008524961300852996130085299613008551961300853477
O-Ring, EPDM96119936559611993650961199365196119936519611994407961199365278
Lower Sealing Element, Blasted, Ra 1.696142205019614220701961422080196142208019614220901961422100179
Lower Sealing Element, Polished, Ra 0.896142205029614220702961422080296142208029614220902961422100279
Guide Ring, PTFE96130084129613008413961300841496130084149613008420961300841580
Cover96130490019613049005961304900696130490069613049015961304900781
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364452
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364552
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364652
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 13

Service Kits

Type22.5346
EPDM9611928109961192811396112811396119281179611928121
NBR96119281109611928114961192811496119281189611928122
FPM96119281119611928115961192811596119281199611928123
HNBR96119281129611928116961192811696119281209611928124



Mixed Size Housing Service Kits - Determined by Smallest Connection Size

Type22.534
EPDM9611928209961192821396119282139611928217
NBR9611928210961192821496119282149611928218
FPM9611928211961192821596119282159611928219

HNBR

9611928212961192821696119282169611928220



Spare Parts

Part22.5346Diagram Key
Intermediate Piece9614255901961425630196142563039614256701961425710137
Bolt for Indication9614257508961425750896142575089614257508961425750882
Sensor for Indication9611995199961199519996119951999611995199961199519983
Cable for Sensor for Indication9611994915961199491596119949159611994915961199491583.1
Plug9615331901961533190196153319019615331901961533190115.2
Spindle Liner9614221101961420530196142053019614205301961420530142
Clamp9613011801961300920196130092019613009201961300920143
Lock9613011701961300910196130091019613009101961300910144
O-Ring, EPDM9611993492961199349396119934939611993493961199349339
O-Ring, EPDM9611995521961199552196119955219611995521961199552140
Flushing Tube9614205401961420540196142054019614205401961420540141
Spray Nozzle, PVDF9614221301961422120196142212019614221201961422120158
Guide Ring, PTFE9613008416961300841796130084179613008417961300841745
O-Ring, EPDM9611993632961199363696119936369611993640961199364447
O-Ring, NBR9611993633961199363796119936379611993641961199364547
O-Ring, FPM9611993634961199363896119936389611993642961199364647
O-Ring, HNBR9611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra 1.69613014201961300640196130064019613018801961301700148
Upper Sealing Element, Polished, Ra 0.89613014203961300640396130064039613018803961301700348
Lip Seal, EPDM9613008501961300851196130085119613008511961300851149
Lip Seal, NBR9613008541961300854396130085439613008543961300854349
Lip Seal, FPM9613008503961300851396130085139613008513961300851349
Lip Seal, HNBR9613008504961300851496130085149613008514961300851449
Guide Ring, PTFE9613008401961300840296130084029613008402961300840254
Upper Plug9614233101961423400196142340019614234501961423500155
Seal Ring, EPDM9613095106961309510996130951099613095119961309511256
Seal Ring, NBR9613095114961309511596130951159613095120961309511656
Seal Ring, FPM9613095105961309510896130951089613095118961309511156
Seal Ring, HNBR9613095104961309510796130951079613095117961309511056
Lip Seal, EPDM9613008706961300871196130087119613008711961300871157
Lip Seal, NBR9613008717961300871896130087189613008718961300871857
Lip Seal, FPM9613008708961300871396130087139613008713961300871357
Lip Seal, HNBR9613008709961300871496130087149613008714961300871457
O-Ring, EPDM9611993555961199357296119935729611993572961199357238
Seal Ring, EPDM9613095206961309520996130952099613095219961309521274
Seal Ring, NBR9613095214961309521596130952159613095220961309521674
Seal Ring, FPM9613095205961309520896130952089613095218961309521174
Seal Ring, HNBR9613095204961309520796130952079613095217961309521074
Lower Plug9614202938961420160296142016029614217822961428480275
Flushing Tube9614205802961420580396142058039614205804961420580570
O-Ring, EPDM9611995523961199552396119955239611995523961199552371
Drain9614205701961420570196142057019614205701961420570172
Nozzle9614205601961420560196142056019614205601961420560173
O-Ring, EPDM96119955229611995522961199552296119955229611995522145
O-Ring, EPDM9611993632961199363696119936369611993640961199364476
O-Ring, NBR9611993633961199363796119936379611993641961199364576
O-Ring, FPM9611993634961199363896119936389611993642961199364676
O-Ring, HNBR9611993635961199363996119936399611993643961199364776
Lip Seal, EPDM9613008521961300852696130085269613008548961300853177
Lip Seal, NBR9613008545961300854696130085469613008553961300854777
Lip Seal, FPM9613008523961300852896130085289613008550961300853377
Lip Seal, HNBR9613008524961300852996130085299613008551961300853477
O-Ring, EPDM9611993650961199365196119936519611994407961199365278
Lower Sealing Element, Blasted, Ra 1.69614220701961422080196142208019614220901961422100179
Lower Sealing Element, Polished, Ra 0.89614220702961422080296142208029614220902961422100279
Guide Ring, PTFE9613008413961300841496130084149613008420961300841580
Cover9613049005961304900696130490069613049015961304900781
O-Ring, EPDM9611993632961199363696119936369611993640961199364452
O-Ring, NBR9611993633961199363796119936379611993641961199364552
O-Ring, FPM9611993634961199363896119936389611993642961199364652
O-Ring, HNBR9611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 12

Service Kits

Type1.522.5346
EPDM961192808996119280939611928097961192809796119281019611928105
NBR961192809096119280949611928098961192809896119281029611928106
FPM961192809196119280959611928099961192809996119281039611928107
HNBR961192809296119280929611928096961192810096119281009611928108



Mixed Size Housing Service Kits - Determined by Largest Connection Size

Type1.522.534
EPDM96119281939611928197961192820196119282019611928205
NBR96119281949611928198961192820296119282029611928206
FPM96119281959611928199961192820396119282039611928207
HNBR96119281969611928200961192820496119282049611928208



Spare Parts

Part1.522.5346Diagram Key
Intermediate Piece96142555019614255901961425630196142563039614256701961425710137
Bolt for Indication96142575089614257508961425750896142575089614257508961425750882
Sensor for Indication96119957709611995770961199577096119957709611995770961199577083
Cable for Sensor for Indication96119949159611994915961199491596119949159611994915961199491583.1
Plug96153319019615331901961533190196153319019615331901961533190115.2
Spindle Liner96142211019614221101961420530196142053019614205301961420530142
Clamp96130118019613011801961300920196130092019613009201961300920143
Lock96130117019613011701961300910196130091019613009101961300910144
O-Ring, EPDM96119934929611993492961199349396119934939611993493961199349339
O-Ring, EPDM96119955219611995521961199552196119955219611995521961199552140
Flushing Tube96142054019614205401961420540196142054019614205401961420540141
Spray Nozzle, PVDF96142213019614221301961422120196142212019614221201961422120158
Guide Ring, PTFE96130084129613008413961300841496130084149613008420961300841545
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364447
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364547
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364647
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra 1.696130157019613014202961300640296130064029613066001961301700248
Upper Sealing Element, Polished, Ra 0.896130157029613014204961300640496130064049613066002961301700448
Lip Seal, EPDM96130085169613008521961300852696130085269613008548961300853149
Lip Seal, NBR96130085449613008545961300854696130085469613008553961300854749
Lip Seal, FPM96130085189613008523961300852896130085289613008550961300853349
Lip Seal, HNBR96130085199613008524961300852996130085299613008551961300853449
Guide Ring, PTFE96130084019613008401961300840296130084029613008402961300840254
Upper Plug96142325019614233109961423400796142340079614234505961423500355
Seal Ring, EPDM96130951069613095106961309510996130951099613095119961309511256
Seal Ring, NBR96130951149613095114961309511596130951159613095120961309511656
Seal Ring, FPM9610951059613095105961309510896130951089613095118961309511156
Seal Ring, HNBR96130951049613095104961309510796130951079613095117961309511056
Lip Seal, EPDM96130087069613008706961300871196130087119613008711961300871157
Lip Seal, NBR96130087179613008717961300871896130087189613008718961300871857
Lip Seal, FPM96130087089613008708961300871396130087139613008713961300871357
Lip Seal, HNBR96130087099613008709961300871496130087149613008714961300871457
O-Ring, EPDM96119935559611993555961199357296119935729611993572961199357238
Seal Ring, EPDM96130952069613095206961309520996130952099613095219961309521274
Seal Ring, NBR96130952149613095214961309521596130952159613095220961309521674
Seal Ring, FPM96130952059613095205961309520896130952089613095218961309521174
Seal Ring, HNBR96130952049613095204961309520796130952079613095217961309521074
Lower Plug96142029019614202937961420160196142016019614217821961428480175
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364476
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364576
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364676
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364776
Lip Seal, EPDM96130085169613008521961300852696130085269613008548961300853177
Lip Seal, NBR96130085449613008545961300854696130085469613008553961300854777
Lip Seal, FPM96130085189613008523961300852896130085289613008550961300853377
Lip Seal, HNBR96130085199613008524961300852996130085299613008551961300853477
Lower Sealing Element, Blasted, Ra 1.696130237019613023902961302410296130241029613066201961302450279
Lower Sealing Element, Polished, Ra 0.896130237029613023904961302410496130241049613066202961302450479
Guide Ring, PTFE96130084129613008413961300841496130084149613008420961300841580
Cover96130490019613049005961304900696130490069613049015961304900781
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364452
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364552
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364652
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 6

Service Kits

Type1.522.5346
EPDM961192805396119280579611928061961192806196119280659611928069
NBR961192805496119280589611928062961192806296119280669611928070
FPM961192805596119280599611928063961192806396119280679611928071
HNBR961192805696119280609611928064961192806496119280689611928072



Mixed Housing Size Service Kits - Determined by Smallest Connection Size

Type1.522.534
EPDM96119281659611928169961192817396119281739611928177
NBR96119281669611928170961192817496119281749611928178
FPM96119281679611928171961192817596119281759611928179
HNBR96119281689611928172961192817696119281769611928180



Spare Parts

Part1.522.5346Diagram Key
Intermediate Piece96142555029614255902961425630296142563049614256702961425710237
Bolt for Indication96142575089614257508961425750896142575089614257508961425750882
Sensor for Indication96119957709611995770961199577096119957709611995770961199577083
Cable for Sensor for Indication96119949159611994915961199491596119949159611994915961199491583.1
Plug96153319019615331901961533190196153319019615331901961533190115.2
Spindle Liner96142211019614221101961420530196142053019614205301961420530142
Clamp96130118019613011801961300920196130092019613009201961300920143
Lock96130117019613011701961300910196130091019613009101961300910144
O-Ring, EPDM96119934929611993492961199349396119934939611993493961199349339
O-Ring, EPDM96119955219611995521961199552196119955219611995521961199552140
Flushing Tube96142054019614205401961420540196142054019614205401961420540141
Spray Nozzle, PVDF96142213019614221301961422120196142212019614221201961422120158
Guide Ring96130084129613008413961300841496130084149613008420961300841545
O-Ring, EPDM96119936559611993653961199365496119936549611993654961199365446
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364447
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364547
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364647
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra 1.696142201019614219801961420590196142059019614219901961422000148
Upper Sealing Element, Polished, Ra 0.896142201029614219802961420590296142059029614219902961422000248
Lip Seal, EPDM96130085169613008521961300852696130085269613008548961300853149
Lip Seal, NBR96130085449613008545961300854696130085469613008553961300854749
Lip Seal, FPM96130085189613008523961300852896130085289613008550961300853349
Lip Seal, HNBR96130085199613008524961300852996130085299613008551961300853449
Flushing Tube96142058019614205802961420580396142058039614205804961420580566
O-Ring, EPDM96119955239611995523961199552396119955239611995523961199552367
Drain96142057019614205701961420570196142057019614205701961420570168
Nozzle96142056019614205601961420560196142056019614205601961420560169
O-Ring, EPDM961199552296119955229611995522961199552296119955229611995522144
Guide Ring, PTFE96130084019613008401961300840296130084029613008402961300840254
Upper Plug96142325029614233110961423400896142340089614234506961423500455
Seal Ring, EPDM96130951069613095106961309510996130951099613095119961309511256
Seal Ring, NBR96130951149613095114961309511596130951159613095120961309511656
Seal Ring, FPM96130951059613095105961309510896130951089613095118961309511156
Seal Ring, HNBR96130951049613095104961309510796130951079613095117961309511056
Lip Seal, EPDM96130087069613008706961300871196130087119613008711961300871157
Lip Seal, NBR961300871796130087179613000871896130087189613008718961300871857
Lip Seal, FPM96130087089613008708961300871396130087139613008713961300871375
Lip Seal, HNBR96130087099613008709961300871496130087149613008714961300871457
O-Ring, EPDM96119935559611993555961199357296119935729611993572961199357238
Seal Ring, EPDM96130952069613095206961309520996130952099613095219961309521274
Seal Ring, NBR96130952149613095214961309521596130952159613095220961309521674
Seal Ring, FPM96130952059613095205961309520896130952089613095218961309521174
Seal Ring, HNBR96130952049613095204961309520796130952079613095217961309521074
Lower Plug96142029049614202940961420160496142016049614217824961428480475
Flushing Tube96142058019614205802961420580396142058039614205804961420580570
O-Ring, EPDM96119955239611995523961199552396119955239611995523961199552371
Drain96142057019614205701961420570196142057019614205701961420570172
Nozzle96142056019614205601961420560196142056019614205601961420560173
O-Ring, EPDM961199552296119955229611995522961199552296119955229611995522145
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364476
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364576
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364676
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364776
Lip Seal, EPDM96130085169613008521961300852696130085269613008548961300853177
Lip Seal, NBR96130085449613008545961300854696130085469613008553961300854777
Lip Seal, FPM96130085189613008523961300852896130085289613008550961300853377
Lip Seal, HNBR96130085199613008524961300852996130085299613008551961300853477
O-Ring, EPDM96119936559611993650961199365196119936519611994407961199365278
Lower Sealing Element, Blasted, Ra 1.696142205019614220701961422080196142208019614220901961422100179
Lower Sealing Element, Polished, Ra 0.896142205029614220702961422080296142208029614220902961422100279
Guide Ring, PTFE96130084129613008413961300841496130084149613008420961300841580
Cover96130490019613049006961304900696130490069613049015961304900781
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364452
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364552
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364652
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 5

Service Kits

Type22.5346
EPDM96119280379611928041961192804196119280459611928049
NBR96119280389611928042961192804296119280469611928050
FPM96119280399611928043961192804396119280479611928051
HNBR96119280409611928044961192804496119280489611928052



Mixed Size Housing Service Kits - Determined by Smallest Connection Size

Type22.534
EPDM9611928153961192815796119281579611928161
NBR9611928154961192815896119281589611928162
FPM9611928155961192815996119281599611928163
HNBR9611928156961192816096119281609611928164



Spare Parts

Part22.5346Diagram Key
Intermediate Piece9614255902961425630296142563049614256702961425710237
Bolt for Indication9614257508961425750896142575089614257508961425750882
Sensor for Indication9611995199961199519996119951999611995199961199519983
Cable for Sensor Indication9611994915961199491596119949159611994915961199491583.1
Plug9615331901961533190196153319019615331901961533190115.2
Spindle Liner9614221101961420530196142053019614205301961420530142
Clamp9613011801961300920196130092019613009201961300920143
Lock9613011701961300910196130091019613009101961300910144
O-Ring, EPDM9611993492961199349396119934939611993493961199349339
O-Ring, EPDM9611995521961199552196119955219611995521961199552140
Flushing Tube9614205401961420540196142054019614205401961420540141
Spray Nozzle, PVDF9614221301961422120196142212019614221201961422120158
Guide Ring9613008416961300841796130084179613008417961300841745
O-Ring, EPDM9611993653961199365496119936549611993654961199365446
O-Ring, EPDM9611993632961199363696119936369611993640961199364447
O-Ring, NBR9611993633961199363796119936379611993641961199364547
O-Ring, FPM9611993634961199363896119936389611993642961199364647
O-Ring, HNBR9611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra 1.69614220201961422030196142203019614220401961422060148
Upper Sealing Element, Polished, Ra 0.89614220202961422030296142203029614220402961422060248
Lip Seal, EPDM9613008501961300851196130085119613008511961300851149
Lip Seal, NBR9613008541961300854396130085439613008543961300854349
Lip Seal, FPM9613008503961300851396130085139613008513961300851349
Lip Seal, HNBR9613008504961300851496130085149613008514961300851449
Flushing Tube9614205802961420580396142058039614205804961420580566
O-Ring, EPDM9611995523961199552396119955239611995523961199552367
Drain9614205701961420570196142057019614205701961420570168
Nozzle9614205601961420560196142056019614205601961420560169
O-Ring, EPDM96119955229611995522961199552296119955229611995522144
Guide Ring, PTFE9613008401961300840296130084029613008402961300840254
Upper Plug9614233102961423400296142340029614234502961423500255
Seal Ring, EPDM9613095106961309510996130951099613095119961309511256
Seal Ring, NBR9613095114961309511596130951159613095120961309511656
Seal Ring, FPM9613095105961309510896130951089613095118961309511156
Seal Ring, HNBR9613095104961309510796130951079613095117961309511056
Lip Seal, EPDM9613008706961300871196130087119613008711961300871157
Lip Seal, NBR9613008717961300871896130087189613008718961300871857
Lip Seal, FPM9613008708961300871396130087139613008713961300871357
Lip Seal, HNBR9613008709961300871496130087149613008714961300871457
O-Ring, EPDM9611993555961199357296119935729611993572961199357238
Seal Ring, EPDM9613095206961309520996130952099613095219961309521274
Seal Ring, NBR9613095214961309521596130952159613095220961309521674
Seal Ring, FPM9613095205961309520896130952089613095218961309521174
Seal Ring, HNBR9613095204961309520796130952079613095217961309521074
Lower Plug9614202940961420160496142016049614217824961428480475
Flushing Tube9614205802961420580396142058039614205804961420580570
O-Ring, EPDM9611995523961199552396119955239611995523961199552371
Drain9614205701961420570196142057019614205701961420570172
Nozzle9614205601961420560196142056019614205601961420560173
O-Ring, EPDM96119955229611995522961199552296119955229611995522145
O-Ring, EPDM9611993632961199363696119936369611993640961199364476
O-Ring, NBR9611993633961199363796119936379611993641961199364576
O-Ring, FPM9611993634961199363896119936389611993642961199364676
O-Ring, HNBR9611993635961199363996119936399611993643961199364776
Lip Seal, EPDM9613008521961300852696130085269613008548961300853177
Lip Seal, NBR9613008545961300854696130085469613008553961300854777
Lip Seal, FPM9613008523961300852896130085289613008550961300853377
Lip Seal, HNBR9613008524961300852996130085299613008551961300853477
O-Ring, EPDM9611993650961199365196119936519611994407961199365278
Lower Sealing Element, Blasted, Ra 1.69614220701961422080196142208019614220901961422100179
Lower Sealing Element, Polished, Ra 0.89614220702961422080296142208029614220902961422100279
Guide Ring, PTFE9613008413961300841496130084149613008420961300841580
Cover9613049005961304900696130490069613049015961304900781
O-Ring, EPDM9611993632961199363696119936369611993640961199364452
O-Ring, NBR9611993633961199363796119936379611993641961199364552
O-Ring, FPM9611993634961199363896119936389611993642961199364652
O-Ring, HNBR9611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Setup 4

Service Kits

Type1.522.5346
EPDM961192801796119280219611928025961192802596119280299611928033
NBR961192801896119280229611928026961192802696119280309611928034
FPM9611928019961192802396119280279611928027961192803196119208035
HNBR961192802096119280249611928028961192802896119280329611928036



Service Kits - Mixed Size Housing (Determined by Smallest Connection Size)

Type1.522.534
EPDM96119281379611928141961192814596119281459611928149
NBR96119281389611928142961192814696119281469611928150
FPM96119281399611928143961192814796119281479611928151
HNBR96119281409611928144961192814896119281489611928152



Spare Parts

Part1.522.5346Diagram Key
Intermediate Piece96142555029614255902961425630296142563049614256702961425710237
Bolt for Indication96142575089614257508961425750896142575089614257508961425750882
Sensor for Indication96119957709611995770961199577096119957709611995770961199577083
Cable for Sensor for Indication96119949159611994915961199491596119949159611994915961199491583.1
Plug96153319019615331901961533190196153319019615331901961533190115.2
Spindle Liner96142211019614221101961420530196142053019614205301961420530142
Clamp96130118019613011801961300920196130092019613009201961300920143
Lock96130117019613011701961300910196130091019613009101961300910144
O-Ring, EPDM96119934929611993492961199349396119934939611993493961199349339
O-Ring, EPDM96119955219611995521961199552196119955219611995521961199552140
Flushing Tube96142054019614205401961420540196142054019614205401961420540141
Spray Nozzle, PVDF96142213019614221301961422120196142212019614221201961422120158
Guide Ring96130084129613008413961300841496130084149613008420961300841545
O-Ring, EPDM96119936559611993653961199365496119936549611993654961199365446
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364447
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364547
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364647
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra1.696142201019614219801961420590196142059019614219901961422000148
Upper Sealing Element, Polsihed, Ra0.896142201029614219802961420590296142059029614219902961422000248
Lip Seal, EPDM96130085169613008521961300852696130085269613008548961300853149
Lip Seal, NBR96130085449613008545961300854696130085469613008553961300854749
Lip Seal, FPM96130085189613008523961300852896130085289613008550961300853349
Lip Seal, HNBR96130085199613008524961300852996130085299613008551961300853449
Flushing Tube96142058019614205802961420580396142058039614205804961420580566
O-Ring, EPDM96119955239611995523961199552396119955239611995523961199552367
Drain96142057019614205701961420570196142057019614205701961420570168
Nozzle96142056019614205601961420560196142056019614205601961420560169
O-Ring, EPDM961199552296119955229611995522961199552296119955229611995522144
Guide Ring, PTFE96130084019613008401961300840296130084029613008402961300840254
Upper Plug9614232502961423311096142340089614234089614234506961423500455
Seal Ring, EPDM96130951069613095106961309510996130951099613095119961309511256
Seal Ring, NBR96130951149613095114961309511596130951159613095120961309511656
Seal Ring, FPM96130951059613095105961309510896130951089613095118961309511156
Seal Ring, HNBR96130951049613095104961309510796130951079613095117961309511056
Lip Seal, EPDM96130087069613008706961300871196130087119613008711961300871157
Lip Seal, NBR96130087179613008717961300871896130087189613008718961300871857
Lip Seal, FPM96130087089613008708961300871396130087139613008713961300871357
Lip Seal, HNBR96130087099613008709961300871496130087149613008714961300871457
O-Ring, EPDM96119935559611993555961199357296119935729611993572961199357238
Seal Ring, EPDM96130952069613095206961309520996130952099613095219961309521274
Seal Ring, NBR96130952149613095214961309521596130952159613095220961309521674
Seal Ring, FPM96130952059613095205961309520896130952089613095218961309521174
Seal Ring, HNBR96130952049613095204961309520796130952079613095217961309521074
Lower Plug96142029039614202939961420160396142016039614217823961428480375
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364476
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364576
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364676
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364776
Lip Seal, EPDM96130085169613008521961300852696130085269613008548961300853177
Lip Seal, NBR96130085449613008545961300854696130085469613008553961300854777
Lip Seal, FPM96130085189613008523961300852896130085289613008550961300853377
Lip Seal, HNBR96130085199613008524961300852996130085299613008551961300853477
Lower Sealing Element, Blasted, Ra1.696130237019613023902961302410296130241029613066201961302450279
Lower Sealing Element, Polished, Ra0.896130237029613023904961302410496130241049613066202961302450479
Guide Ring96130084129613008413961300841496130084149613008420961300841580
Cover96130490019613049005961304900696130490069613049015961304900781
O-Ring, EPDM96119936289611993632961199363696119936369611993640961199364452
O-Ring, NBR96119936299611993633961199363796119936379611993641961199364552
O-Ring, FPM96119936309611993634961199363896119936389611993642961199364652
O-Ring, HNBR96119936319611993635961199363996119936399611993643961199364752

Mixproof CP-3 Valve Parts List

Mixproof CP-3 Plug Set Up 3

Service Kits

Type22.5346
EPDM96119280019611928005961192800596119280099611928013
NBR96119280029611928006961192800696119280109611928014
FPM96119280039611928007961192800796119280119611928015
HNBR96119280049611928008961192800896119280129611928016



Service Kits - Mixed Size Housing (Determined by Smallest Connection Size)

Type22.534
EPDM9611928125961192812996119281299611928133
NBR9611928126961192813096119281309611928134
FPM9611928127961192813196119281319611928135
HNBR9611928128961192813296119281329611928136



Spare Parts

Part22.5346Diagram Key
Intermediate Piece9614255902961425630296142563049614256702961425710237
Bolt for Indication9614257508961425750896142575089614257508961425750882
Sensor for Indication9611995199961199519996119951999611995199961199519983
Cable for Sensor for Indication9611994915961199491596119949159611994915961199491583.1
Plug9615331901961533190196153319019615331901961533190115.2
Spindle Liner9614221101961420530196142053019614205301961420530142
Clamp9613011801961300920196130092019613009201961300920143
Lock9613011701961300910196130091019613009101961300910144
O-Ring, EPDM9611993492961199349396119934939611993493961199349339
O-Ring, EPDM9611995521961199552196119955219611995521961199552140
Flushing Tube9614205401961420540196142054019614205401961420540141
Spray Nozzle, PVDF9614221301961422120196142212019614221201961422120158
Upper Sealing Element, Guide Ring, PTFE9613008416961300841796130084179613008417961300841745
Upper Sealing Element, O-Ring, EPDM9611993653961199365496119936549611993654961199365446
Upper Sealing Element, O-Ring, EPDM9611993632961199363696119936369611993640961199364447
Upper Sealing Element, O-Ring, NBR9611993633961199363796119936379611993641961199364547
Upper Sealing Element, O-Ring, FPM9611993634961199363896119936389611993642961199364647
O-Ring, HNBR9611993635961199363996119936399611993643961199364747
Upper Sealing Element, Blasted, Ra 1.69614220201961422030196142203019614220401961422060148
Upper Sealing Element, Polished, Ra 0.89614220202961422030296142203029614220402961422060248
Upper Sealing Element, Lip Seal, EPDM9613008501961300851196130085119613008511961300851149
Upper Sealing Element, Lip Seal, NBR9613008541961300854396130085439613008543961300854349
Upper Sealing Element, Lip Seal, FPM9613008503961300851396130085139613008513961300851349
Upper Sealing Element, Lip Seal, HNBR9613008504961300851496130085149613008514961300851449
Upper Sealing Element, Flushing Tube9614205802961420580396142058039614205804961420580566
Upper Sealing Element, O-Ring, EPDM9611995523961199552396119955239611995523961199552367
Upper Sealing Element, Drain9614205701961420570196142057019614205701961420570168
Upper Sealing Element, Nozzle9614205601961420560196142056019614205601961420560169
Upper Sealing Element, O-Ring, EPDM96119955229611995522961199552296119955229611995522144
Upper Plug, Guide Ring, PTFE9613008401961300840296130084029613008402961300840254
Upper Plug9614233102961423400296142340029614234502961423500255
Upper Plug, Seal Ring, EPDM9613095106961309510996130951099613095119961309511256
Upper Plug, Seal Ring, NBR9613095114961309511596130951159613095120961309511656
Upper Plug, Seal Ring, FPM9613095105961309510896130951089613095118961309511156
Upper Plug, Seal Ring, HNBR9613095104961309510796130951079613095117961309511056
Upper Plug, Lip Seal, EPDM9613008706961300871196130087119613008711961300871157
Upper Plug, Lip Seal, NBR9613008717961300871896130087189613008718961300871857
Upper Plug, Lip Seal, FPM9613008708961300871396130087139613008713961300871357
Upper Plug, Lip Seal, HNBR9613008709961300871496130087149613008714961300871457
Lower Plug, O-Ring, EPDM9611993555961199357296119935729611993572961199357238
Lower Plug, Seal Ring, EPDM9613095206961309520996130952099613095219961309521274
Lower Plug, Seal Ring, NBR9613095214961309521596130952159613095220961309521674
Lower Plug, Seal Ring, FPM9613095205961309520896130952089613095218961309521174
Lower Plug, Seal Ring, HNBR9613095204961309520796130952079613095217961309521074
Lower Plug9614202939961420160396142016039614217823961428480375
Lower Sealing Element, O-Ring, EPDM9611993632961199363696119936369611993640961199364476
Lower Sealing Element, O-Ring, NBR9611993633961199363796119936379611993641961199364576
Lower Sealing Element, O-Ring, FPM9611993634961199363896119936389611993642961199364676
Lower Sealing Element, O-Ring, HNBR9611993635961199363996119936399611993643961199364776
Lower Sealing Element, Lip Seal, EPDM9613008521961300852696130085269613008548961300853177
Lower Sealing Element, Lip Seal, NBR961300854596130085469610085469613008553961300854777
Lower Sealing Element, Lip Seal, FPM9613008523961300852896130085289613008550961300853377
Lower Sealing Element, Lip Seal, HNBR9613008524961300852996130085299613008551961300853477
Lower Sealing Element, Blasted, Ra 1.69613023902961302410296130241029613066201961302450279
Lower Sealing Element, Polished, Ra 0.89613023904961302410496130241049613066202961302450479
Lower Sealing Element, Guide Ring, PTFE9613008413961300841496130084149613008420961300841580
Lower Sealing Element, Cover9613049005961304900696130490069613049015961304900781
O-Ring, EPDM9611993632961199363696119936369611993640961199364452
O-Ring, NBR9611993633961199363796119936379611993641961199364552
O-Ring, FPM9611993634961199363896119936389611993642961199364652
O-Ring, HNBR9611993635961199363996119936399611993643961199364752


Mixproof CP-3 Actuator Spare Parts
Part1.522.5346Diagram Key
Actuator, Complete, Dairy, Blasted, No Seat Lift961305548196130554819613099546961309954696130837829613083782-
Actuator, Complete, Dairy, Blasted, Both Seat Lift961305548496130554849613099549961309954996130837859613083785-
Actuator, Complete, Dairy, Polished, No Seat Lift961305548596130554859613099550961309955096130837869613083786-
Actuator, Complete, Dairy, Polished, Both Seat Lift961305548896130554889613099553961309955396130837899613083789-
Actuator, Complete, Non-Dairy, Blasted, No Seat Lift961305548996130554899613099554961309955496130837909613083790-
Actuator, Complete, Non-Dairy, Blasted, Both Seat Lift961305549296130554929613099557961309955796130837939613083793-
Actuator, Complete, Non-Dairy, Polished, No Seat Lift961305549396130554939613099558961309955896130837949613083794-
Actuator, Complete, Non-Dairy, Polished, Both Seat Lift961305549696130554969613099561961309956196130837979613083797-
Upper Stem9613010102961301010296130074019613007401961300740296130074021
ScrewN/AN/A96119933429611993342961199334296119933422
Air Fitting, Blue9611993780961199378096119937809611993780961199378096119937803
Air Fitting, Red9611994172961199417296119941729611994172961199417296119941723.1
Air Fitting, Yellow9611994171961199417196119941719611994171961199417196119941713.2
Stop for Upper PistonN/AN/A96130053019613005301961300530296130053024
O-Ring, NBR9611993499961199349996119934999611993499961199349996119934995
Guide Ring, Turcite9613008408961300840896130084089613008408961300840896130084086
O-Ring, NBRN/AN/A96119935149611993514961199351496119935147
Upper PistonN/AN/A96130056019613005601961300560296130056028
O-Ring, NBRN/AN/A96119935129611993512961199351396119935139
Spring Assembly96130125019613012501961300750196130075019613025603961302560310
Distance Spacer96130102029613010202N/AN/AN/AN/A11
Screw96119917639611991763N/AN/AN/AN/A11.1
Pin96119941979611994197961199419896119941989611994199961199419912
Washer96119935949611993594961199359596119935959611993596961199359613
Spring Assembly96130131019613013101961300950296130095029613009502961300950214
Plug96134141019613414101961341410196134141019613414101961341410115
Plug96119937099611993709961199370996119937099611993709961199370915.1
Main Piston96130132019613013201961300570196130057019613015901961301590117
Guide Ring, Turcite96130084099613008409961300841096130084109613008411961300841118
O-Ring, NBR96119935059611993505961199350796119935079611993509961199350919
O-Ring, NBR96119935039611993503961199360796119936079611993607961199360720
Bottom96130140019613014001961300540196130054019613016801961301680121
Guide Ring, Turcite96130084039613008403961300840496130084049613008404961300840422
O-Ring, NBR9611992228961199222896119914899611991489223406752234067523
Retaining Ring96130248029613024802961302480396130248039613024804961302480424
Cover Disk96130058029613005802961300580396130058039613005804961300580425
O-Ring, NBR96119935289611993528961199349596119934959611993530961199353026
Inner Stem96130106029613010602961300730196130073019613007302961300730227
O-Ring96119934959611993495961199003096119900309611990030961199003028
Piston Rod96130134019613013401961300600196130060019613006002961300600229
Lower Piston96130138019613013801961300550196130055019613016601961301660130
O-Ring, NBR42153421534215342153421534215331
Guide Ring, Turcite96130084059613008405961300840696130084069613008407961300840732
O-Ring, NBR2234127522341275961199350896119935089611993510961199351033
Bolt96119936189611993618961199361896119936189611993618961199361834
Washer96119935949611993594961199359496119935949611993594961199359435
Nut96119903609611990360961199036096119903609611990360961199036036

Create a MyCSI Dashboard to save resources for quick reference, track orders, and talk with experts.
