Flex-Rite P-Series PVC Hose
Primarily used in food, beverage, and dairy applications, Flex-Rite P-Series PVC hose and tubing from Ace Manufacturing comply with 3-A, USDA, USP Class VI, and FDA standards. Choose from clear, non-reinforced tubing, braid or wire reinforced, or suction/transfer hoses.
Models
P-Series hoses comply with 3-A, USDA, USP Class VI, and FDA standards.
Ace Sanitary is the manufacturing leader in quality and customer service for the sanitary hose industry. Their mission is to become the complete source for all highest-quality sanitary hose products.
PCT Clear Non-reinforced Tubing
PCT clear non-reinforced tubing is a clear PVC extrusion that complies with 3-A, USDA, USP Class VI & FDA standards.
Materials
| Tube | FDA PVC |
| Cover | Transparent |
| Reinforcement | Clear extrusion no reinforcement |
| Temperature Rating | 25 – 150°F |
| 3-A Approved | 3/4 inch and larger |
Technical Data
| Model | ID (in) | OD (in) | Working Pressure (psi) | Weight/ft (lb) |
|---|---|---|---|---|
| PCT050 | ½ | 0.75 | 45 | 0.13 |
| PCT075 | Âľ | 1.12 | 40 | 0.30 |
| PCT100 | 1 | 1.37 | 35 | 0.38 |
| PCT150 | 1½ | 1.87 | 35 | 0.54 |
| PCT200 | 2 | 2.50 | 35 | 0.96 |

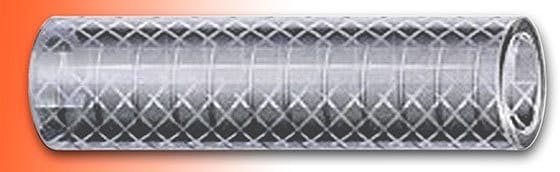

PBT Braid Reinforced Tubing
PBT braid reinforced tubing is flexible and clear, with multiple polyester braids that provide dependable reinforcement for all suitable applications. PBT tubing is compliant with 3-A, USDA, USP Class VI, and FDA standards.
Materials
| Tube | FDA PVC |
| Cover | Transparent |
| Reinforcement | Clear extrusion with polyester textile inner braid |
| Temperature Rating | 25 – 150°F |
| 3-A Approved | 3/4 inch and larger |
Technical Data
| Model | ID (in) | OD (in) | Working Pressure (psi) | Weight/ft (lb) |
|---|---|---|---|---|
| PBT050 | ½ | 0.81 | 200 | 0.13 |
| PBT075 | Âľ | 1.12 | 150 | 0.22 |
| PBT100 | 1 | 1.30 | 125 | 0.30 |
| PBT150 | 1½ | 1.94 | 100 | 0.64 |
| PBT200 | 2 | 2.49 | 75 | 0.94 |

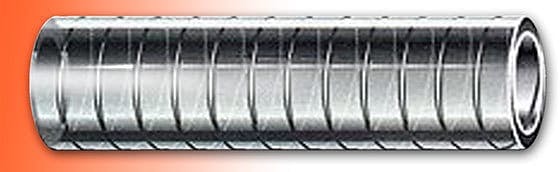

PWT Wire Reinforced Tubing
PWT wire reinforced tubing is constructed of a heavy-duty hose with steel wire helix rod reinforcement that is suitable for milk handling and food processing. It is compliant with 3-A, USDA, USP Class VI, and FDA standards. PWT tubing provides high suction even in higher temperatures.
Materials
| Tube | FDA PVC |
| Cover | Transparent |
| Reinforcement | Clear extrusion with steel wire helix |
| Temperature Rating | 25 – 150°F |
| 3-A Approved | 3/4 inch and larger |
Technical Data
| Model | ID (in) | OD (in) | Working Pressure (psi) | Min Bend Radius (in) | Weight/ft (lb) | Vacuum (inHg) |
|---|---|---|---|---|---|---|
| PWT050 | ½ | .81 | 150 | 2.0 | 0.21 | 29 |
| PWT075 | Âľ | 1.12 | 150 | 3.0 | 0.36 | 29 |
| PWT100 | 1 | 1.37 | 100 | 4.0 | 0.44 | 29 |
| PWT150 | 1½ | 1.86 | 50 | 6.0 | 0.58 | 29 |
| PWT200 | 2 | 2.39 | 50 | 8.0 | 0.84 | 29 |
| PWT250 | 2½ | 3.00 | 50 | 10.0 | 1.38 | 29 |
| PWT300 | 3 | 3.50 | 50 | 12.0 | 1.64 | 29 |
PBW Suction/Transfer Hose
The PBW suction/transfer hose combines polyester braids with the steel wire of the PBT and PWT hoses to provide the benefits of both. The hose is compliant with 3-A, USDA, USP Class VI, and FDA standards.
Materials
| Tube | FDA PVC |
| Cover | Transparent |
| Reinforcement | Clear extrusion with steel wire helix polyester textile inner braid |
| Temperature Rating | 15 – 150°F |
| 3-A Approved | 3/4 inch and larger |
Technical Data
| Model | ID (in) | OD (in) | Working Pressure (psi) | Min Bend Radius (in) | Weight/ft (lb) | Vacuum (inHg) |
|---|---|---|---|---|---|---|
| PBW100 | 1 | 1.45 | 225 | 3.5 | 0.53 | 29 |
| PBW150 | 1½ | 2.03 | 175 | 5.5 | 0.80 | 29 |
| PBW200 | 2 | 2.60 | 150 | 7.0 | 1.28 | 29 |
PHH Suction/Transport Hose
The PHH suction/transport hose is a clear hose that is reinforced with white helix rod. It provides extreme low-temperature flexibility and is ideal for use in milk hauling. The PHH hose is compliant with 3-A, USDA, and FDA standards.
Materials
| Tube | FDA UHMW-PVC |
| Cover | Transparent |
| Reinforcement | Clear extrusion with white helix |
| Temperature Rating | -40 – 150°F |
| 3-A Approved | 3/4 inch and larger |
Technical Data
| Model | ID (in) | OD (in) | Working Pressure (psi) | Min Bend Radius (in) | Weight/ft (lb) | Vacuum (inHg) |
|---|---|---|---|---|---|---|
| PHH150 | 1½ | 1.79 | 75 | 4.0 | 0.45 | 28 |
| PHH200 | 2 | 2.33 | 75 | 5.0 | 0.65 | 28 |
| PHH250 | 2½ | 2.87 | 55 | 8.0 | 0.84 | 28 |
| PHH300 | 3 | 3.42 | 55 | 11.0 | 1.18 | 28 |
PHC Suction/Transfer Hose
The PHC suction/transfer hose is a clear hose that is reinforced with clear helix rod. Suited for in-plant environments, the hose's low temperature flexibility is perfect for all liquid dairy or dry product transfers. The PHC hose is compliant with 3-A, USDA, and FDA standards.
Materials
| Tube | FDA PVC |
| Cover | Transparent |
| Reinforcement | Clear extrusion with clear helix |
| Temperature Rating | -4 – 150°F |
| 3-A Approved | 3/4 inch and larger |
Technical Data
| Model | ID (in) | OD (in) | Working Pressure (psi) | Min Bend Radius (in) | Weight/ft (lb) | Vacuum (inHg) |
|---|---|---|---|---|---|---|
| PHC100 | 1 | 1.28 | 100 | 3.0 | 0.24 | 29 |
| PHC150 | 1½ | 1.80 | 85 | 6.0 | 0.50 | 29 |
| PHC200 | 2 | 2.36 | 85 | 8.0 | 0.71 | 29 |
| PHC250 | 2½ | 2.88 | 65 | 10.0 | 0.94 | 29 |
| PHC300 | 3 | 3.42 | 55 | 11.0 | 1.14 | 29 |
